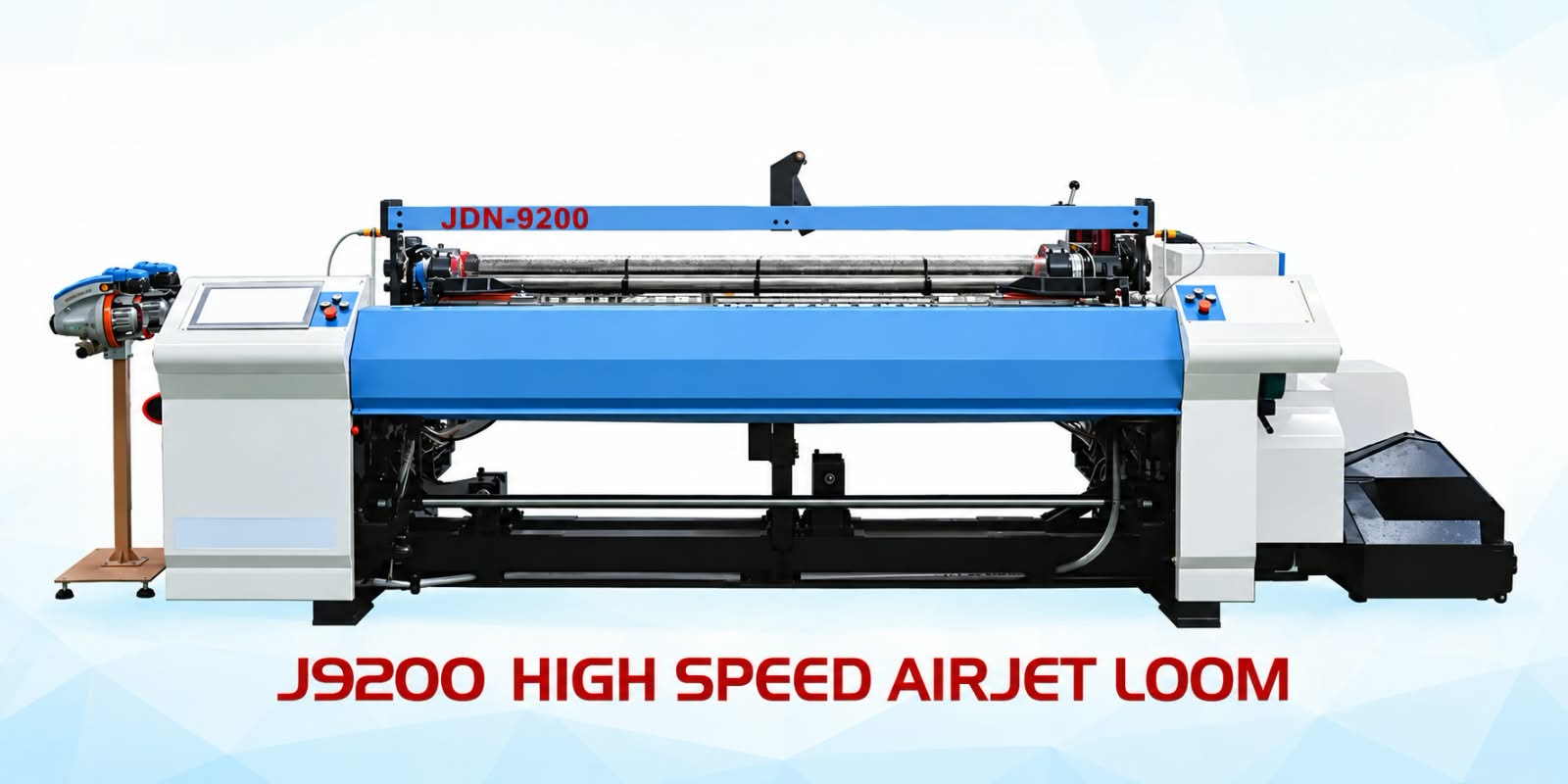

AIRJET LOOM J9200 HIGH SPEED AIRJET LOOM STRONG FRAME STRUCTURE AND STRUCTURE OF BEATING BALANCE:- Engineered for long-lasting durability, our machine delivers consistent, high-precision performance with low noise and minimal vibration, even at high speeds on wide looms. Built with a robust and sturdy body in China, it is designed to handle demanding production environments while ensuring reliable operation across all sizes. This makes it an ideal choice for manufacturers seeking efficiency, stability, and dependable results over continuous use. STRONG FRAME STRUCTURE:- The robust frame structure, mainly composed of a strong box frame on both sides and beams and intermediate rocking supports, ensure stable running and vibration resistance. Meanwhile, adding the beating balance structure, ensure low noise and less vibration even at high speed on the wide loom. DRIVE SYSTEM X MOTOR:- Our machine features a 5 KW Inovance X-Series Motor with a Direct Drive mechanism, enabling adjustable RPM for enhanced efficiency and production flexibility. ELECTRONIC LET-OFF & TAKE-UP MOTION:- Our advanced let-off system, powered by high-precision servomotors with integrated speed reducers, ensures highly accurate warp delivery and precise tension control throughout the weaving process. The servo-driven take-up motion further enhances performance by maintaining consistent fabric pulling and precise pick density, resulting in exceptional weaving quality and uniform fabric output across all production speeds. ENERGY-EFFICIENT MAIN NOZZLE WITH AUTO AIR-CUT MECHANISM:- Engineered for long-lasting durability, our machine delivers consistent, high-precision performance with low noise and minimal vibration, even at high speeds on wide looms. Built with a robust and sturdy body in China, it is designed to handle demanding production environments while ensuring reliable operation across all sizes. This makes it an ideal choice for manufacturers seeking efficiency, stability, and dependable results over continuous use. SUB NOZZEL:- Our machine is equipped with high-quality stainless steel (SS) sub-nozzles coated with DLC (Diamond-Like Carbon), offering outstanding durability, wear resistance and long service life. This advanced coating ensures consistent performance under continuous operation and enhances the overall reliability and efficiency of the machine. ADVANCED AUTO-LUBE SYSTEM:- The main transmission components (casing parts) are lubricated through a reliable oil bath system, which ensures continuous protection and smooth operation even under heavy-duty conditions. All other moving parts are maintained by a centralized oil supply system that distributes lubrication evenly across critical points. The automatic lubrication unit operates based on system instructions, delivering precise amounts of oil at the right time. This not only enhances overall reliability and performance but also significantly reduces maintenance requirements and extends the service life of the machine. CONTROL PANEL – INOVANCE AND BAINA:- Our machine is equipped with an Inovance and Baina panel box that houses all essential machine control cards in one integrated unit, ensuring organized operation and easy maintenance. JDN9200 - Main Specification The following table reproduces the specification text as closely as possible. Some entries are difficult to read in the original PDF image, so please verify those entries against the original document before using them for technical or commercial purposes. Item Specifications Spare Parts Reed width Nominal: 150, 170, 190, 210, 230, 250, 280, 340 Reed width Useful: (nominal): 0–60cm (150–250) / 0–80cm (280) > (280) Working range (short yarn): m100–m25 / (filament): 22dtex–1360dtex Weft selection 1, 2, 4 or 6 color Motor — Start mode Start motor at high speed Motor — Start mode Push-button start, stop, f/r slow move Motor — Start mode Push-button switch handed Motor — Power 2.8KW, 3.0KW, 3.8KW, 4.5KW Weft insertion — Method Main nozzle + swing nozzle + sub nozzle + abnormality lock Weft brake Weft insertion — Control Import high-frequency solenoid valve, computer program control Supporting spray solenoid valve Supporting spray solenoid valve integrated with flow cavity Measuring weft storage Electric control loop separate weft storage Ballooning prevention device Beating-up motion Double side tank oil-bath type four-bar beating-up motion Beating Multi-slaysword solid beating-up warp and weft system Beating Multi-supporting base, balance weight Shedding Crank type flat shedding Shedding Down positive electric multi-dobby shedding Shedding Electronic jacquard shedding Let-off Electric servo continuous let-off Double-warp beam Let-off Twin back beam Let-off Positive or negative let-off Let-off — Flange dia 800mm 1000mm Take-up — Batching method Electric servo continuous take-up Take-up — Batching method Entrails batching (Max dia:1000mm) Take-up — Temple Upper Selvedge Leno yarn by planetary gear
